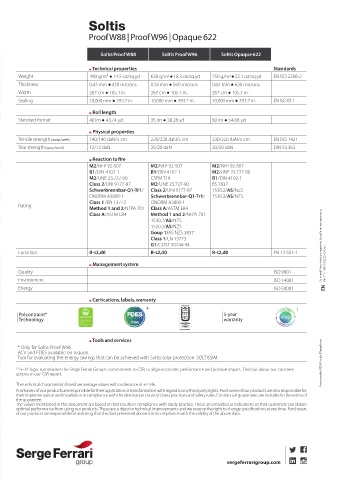

Soltis

Proof W88 | Proof W96 | Opaque 622

Soltis Proof W88 Soltis Proof W96 Soltis Opaque 622

Technical properties Standards
2
2
Weight 490 g/m² • 14.5 oz/sq.yd 620 g/m • 18.3 oz/sq.yd 750 g/m • 22.1 oz/sq.yd EN ISO 2286-2
Thickness 0.43 mm • 430 microns 0.56 mm • 560 microns 0.63 mm • 630 microns
Width 267 cm • 105.1 in. 267 cm • 105.1 in. 267 cm • 105.1 in.
Sealing 10,000 mm • 393.7 in. 10,000 mm • 393.7 in. 10,000 mm • 393.7 in. EN ISO 811

Roll length
Standard format 40 lm • 43.74 yd 35 lm • 38.28 yd 50 lm • 54.68 yd
Physical properties
Tensile strength (warp/weft) 140/140 daN/5 cm 220/220 daN/5 cm 230/220 daN/5 cm EN ISO 1421
Tear strength (warp/weft) 12/12 daN 25/20 daN 20/20 daN DIN 53.363
Reaction to fire
M2/NFP 92-507 M2/NFP 92-507 M2/NFP 92-507
B1/DIN 4102-1 B1/DIN 4102-1 M2/UNE 23.727-90
M2/UNE 23.727-90 CSFM T19 B1/DIN 4102-1
Class 2/UNI 9177-87 M2/UNE 23.727-90 BS 7837
Schwerbrennbar-Q1-Tr1/ Class 2/UNI 9177-87 1530.2/AS/NZS
ONORM A3800-1 Schwerbrennbar-Q1-Tr1/ 1530.3/AS/NZS
Class 1 /EN 13773 ONORM A3800-1
Rating
Method 1 and 2/NFPA 701 Class A/ASTM E84
Class A/ASTM E84 Method 1 and 2/NFPA 701
1530.2/AS/NZS
1530.3/AS/NZS
Goup 1/AS NZS 3837
Class 1/EN 13773
G1/GOST 30244-94 Soltis and Précontraint are registered Serge Ferrari sas trademarks.
Euroclass B-s2,d0 B-s2,d0 B-s2,d0 EN 13 501-1
Management system Réf. CT-01289 • 03/2023 • 3,00 eur
Quality ISO 9001
Environment ISO 14001
Energy ISO 50001 EN

Certications, labels, warranty

"Soltis Opaque 622"

SERGE
FERRARI SAS
F-38352 1
La Tour du Pin

Précontraint® P-BAY26- 5-year
210129*

Technology warranty
code for the production site
Baustoffklasse schwerentflammbar
DIN 4102-B1
Baustoffklasse nichtbrennbar
DIN 4102-A2
*) number of the technical approval
Tools and services
* Only for Soltis Proof W96
ACV and FDES available on request
Tool for evaluating the energy savings that can be achieved with Soltis solar protection: SOLTISSIM.
1 "+=0" logo: summarises the Serge Ferrari Group’s commitment to CSR, to align economic performance and positive impact. Find out about our concrete Photos credits: ©ZUH Visuals, ©SergeFerrari
actions in our CSR report.
The technical characteristics listed are average values with a tolerance of +/- 5%.

Purchasers of our products are responsible for their application or transformation with regard to any third party rights. Purchasers of our products are also responsible for
their implementation and installation in compliance with the destination country’s best practices and safety rules. Contractual guarantees are included in the terms of
the guarantee.

The values mentioned in this document are based on test results in compliance with study practice. These are provided as indications so that customers can obtain
optimal performance from using our products. These are subject to technical improvements and we reserve the right to change specifications at any time. Purchasers
of our products are responsible for asserting that the data presented above is in incompliance with the validity of the above data.
