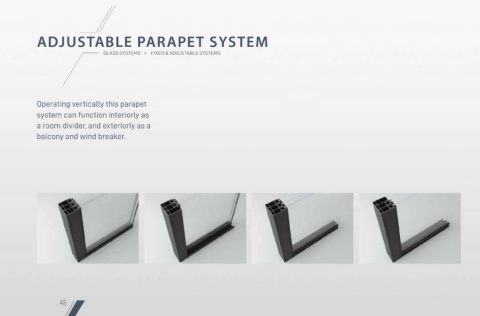

ADJUSTABLE PARAPET SYSTEM CONFIGURATIONS Type 1 Motorized Type 1 Motorized
( Single Glass )
( Double Glass )
GLASS SYSTEMS FIXED & ADJUSTABLE SYSTEMS 3 PANELS 133 133
2 PANELS 156 156
Height 150 - 400 cm* Height 150 - 300 cm*

Operating vertically this parapet 51 51
Width 150 - 400 cm*
system can function interiorly as *Please refer to dimension table Width 150 - 400 cm*
a room divider, and exteriorly as a GLASS OPTIONS 3 Panels 2 Panels 51 51
balcony and wind breaker. Motorized Single Glass 8 mm Tempered 8 mm Tempered
Motorized Double Glass 5+12+5 Tempered 5+12+5 Tempered
66 66
GLASS COLOR OPTIONS
Type 2 Motorized Type 2 Motorized
» Transparent ( Standard ) ( Double Glass ) ( Single Glass )
» Blue 133 133
» Green
» Smoked 156 156
Glass Color Transparent ( Standard )

DIMENSIONS
2 Panels Motorized
Width 150-400cm 150-375cm 150-350cm 150-325cm 150-300cm
Height 200cm 225cm 250cm 275cm 300cm 51 51
(max.)
*Maximum Height varies according to width correlation.
3 Panels Motorized
Width 150-400cm 150-375cm 150-350cm 150-325cm 150-300cm
Height 300cm 325cm 350cm 375cm 400cm
(max.) 66 66
*Maximum Height varies according to width correlation.
TİP 2 Motorlu (Isı Cam)
